ACHome

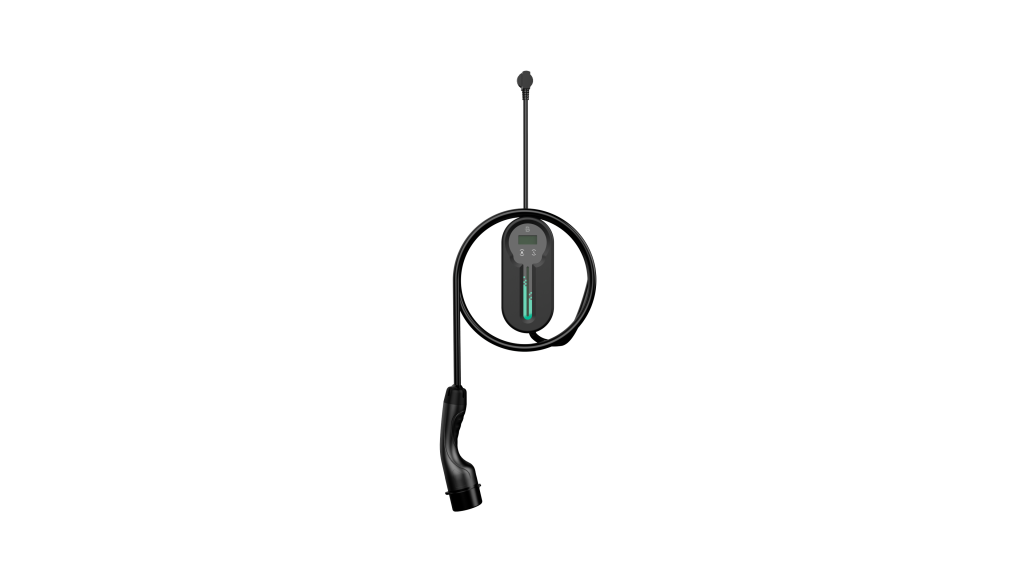

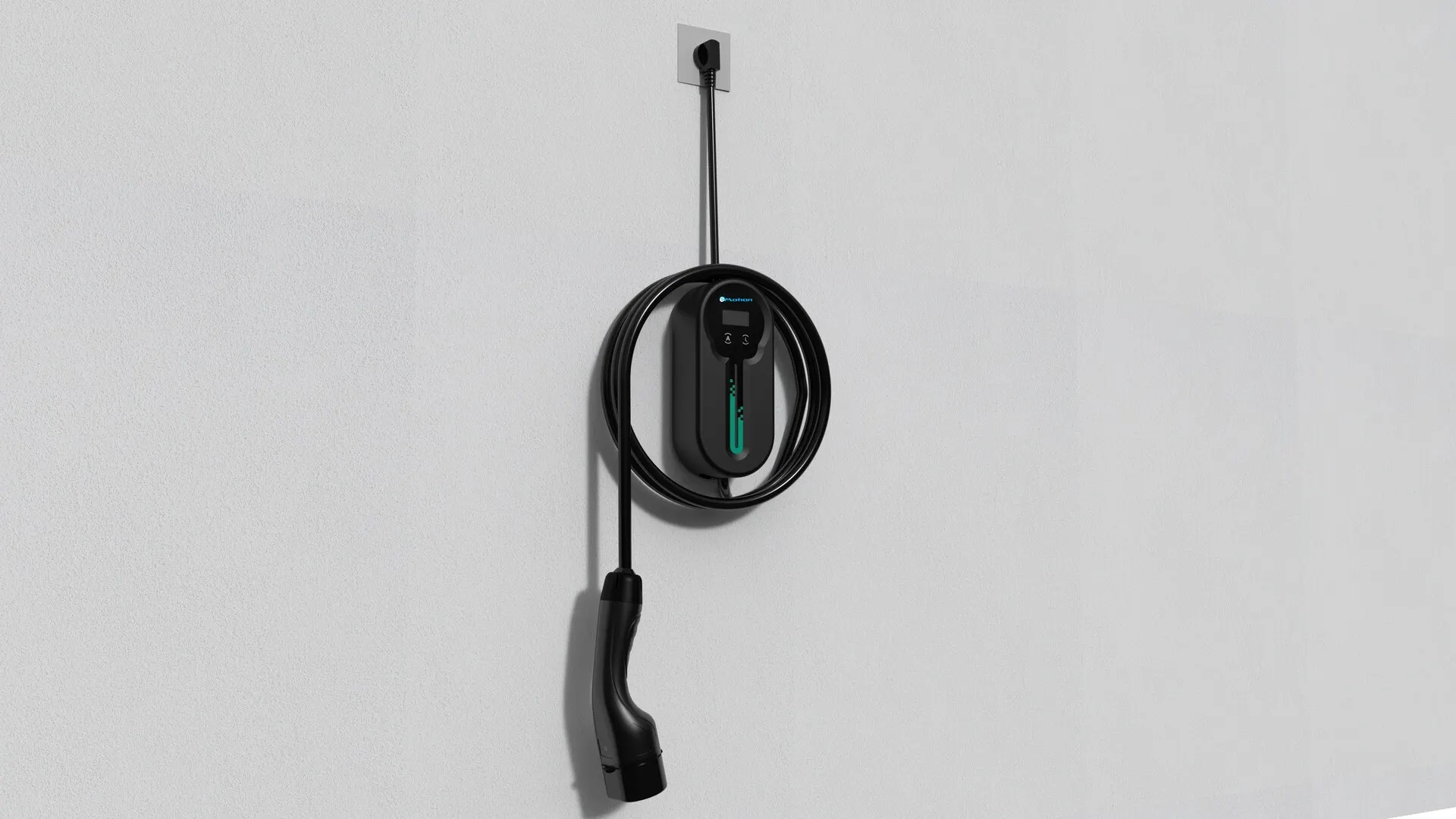

3.7kW Portable Charger
The eMotion 3.7kW charger is a compact and easy-to-use option for home EV charging. It runs on single-phase 230V power and supports up to 16 amps, ideal for overnight charging.

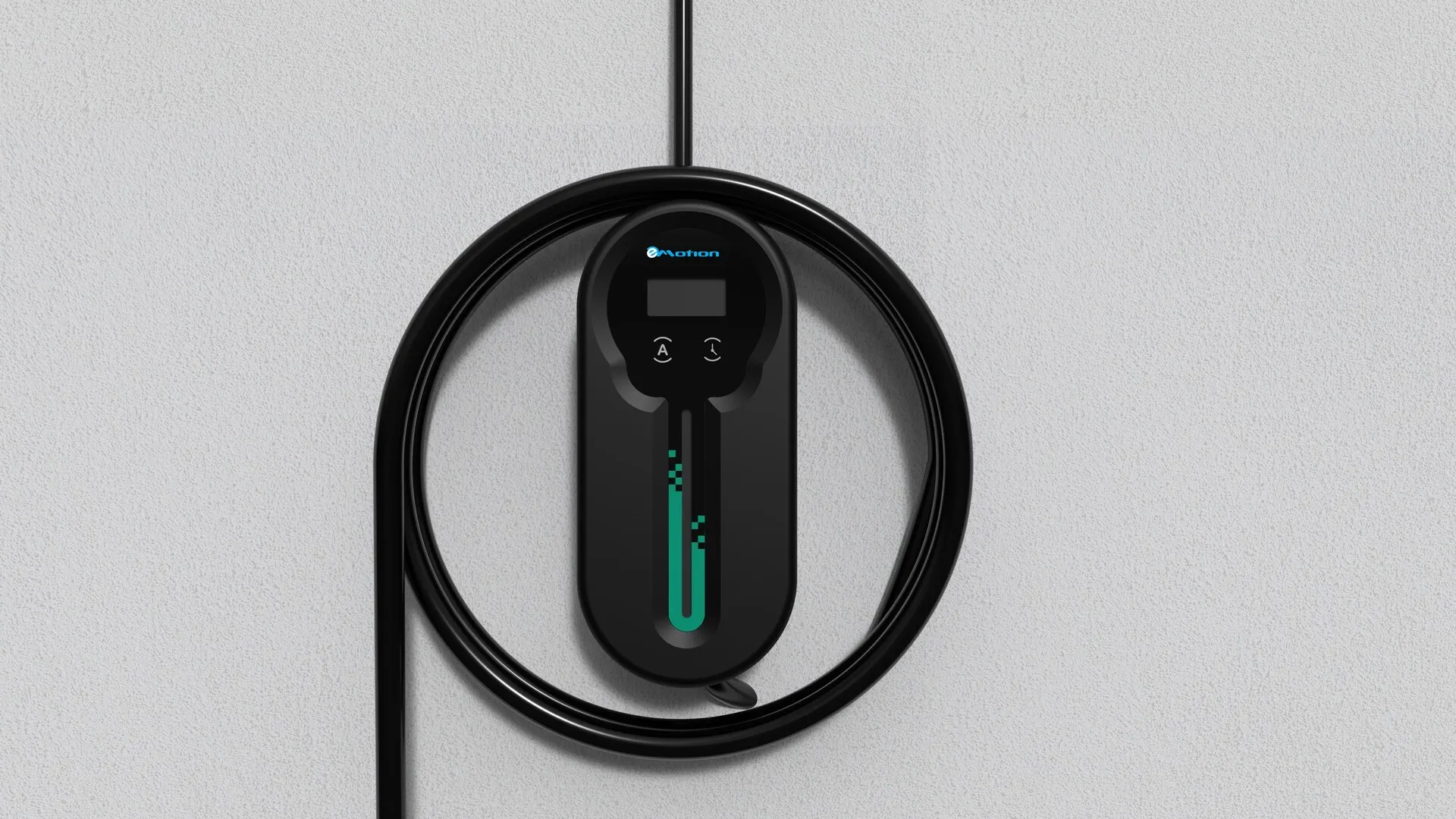

LED indicators and an OLED screen keep things clear and simple. You can set charging times and adjust the current to suit your needs.
It’s built with full safety protection and a durable, weatherproof design. With a 7-meter cable, it’s a hassle-free way to keep your EV ready to go.
Technical Specifications
Specifications
- Power & Voltage3.7kW, AC230V single-phase, 50/60Hz
- Current RangeAdjustable between 8A–16A
- DisplayOLED screen with LED indicators
- Connector:Type 1 or Type 2
Charging Features
- Timed charging
- Adjustable current
- Multiple plug options
Protection & Safety
- Over/under voltage protection
- Overcurrent and leakage protection
- Over-temperature and fire protection
- Lightning, relay adhesion, and CP signal abnormal protection
- Ground and anti-pressure protection
Durability
- IP66-rated for outdoor use
- Operating temperature: -30°C to +50°C
- Storage temperature: -40°C to +85°C
- Max altitude: <2000m
- Working life: <10,000 uses
- Cable: 1m plug + up to 7m total length
PUCSL Compliant
Meets all local regulatory standards for grid connection.
2-Year Warranty
Comprehensive hardware coverage for peace of mind.
Professional Installation
Certified engineers ensure safe and optimal setup.
