ACHome

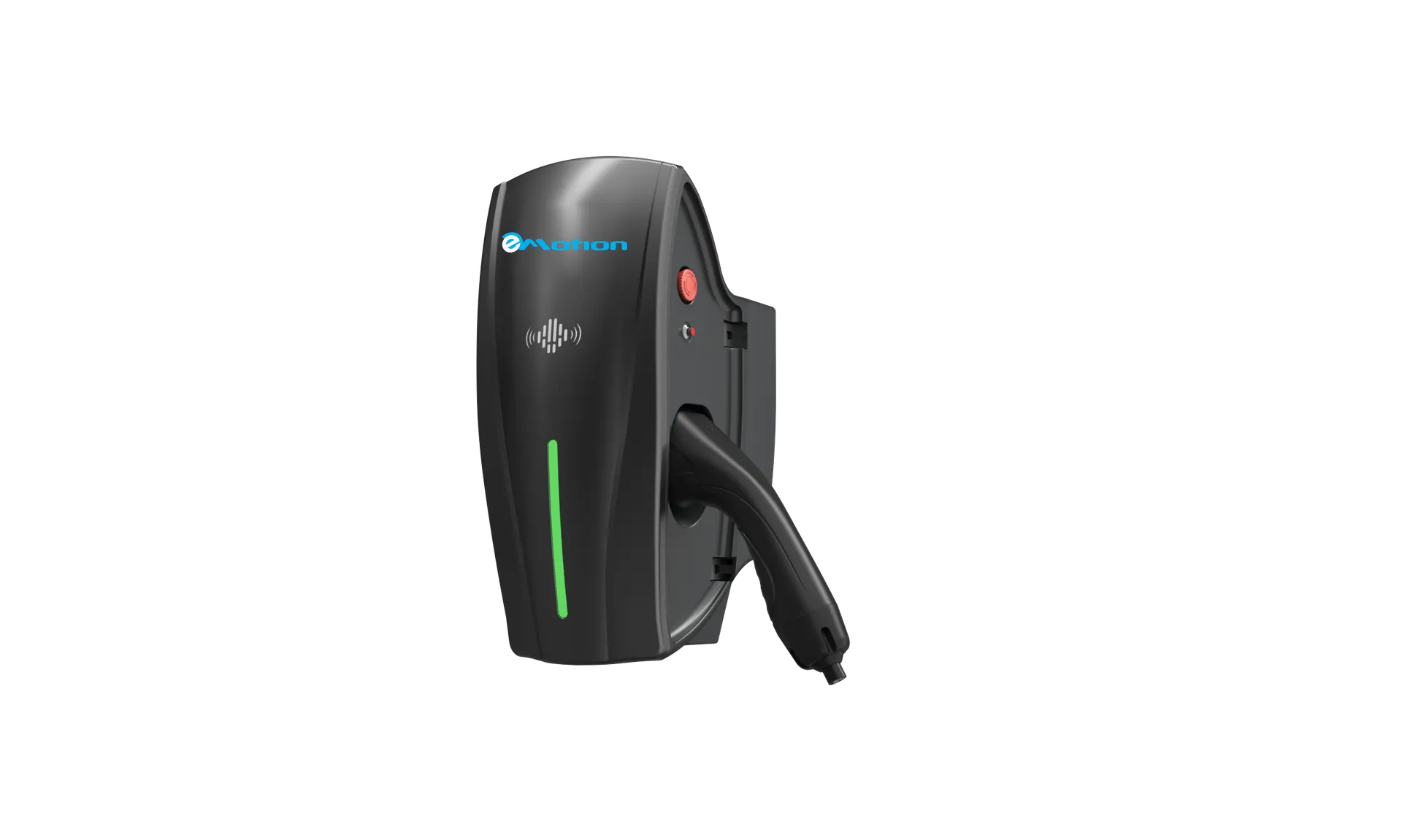

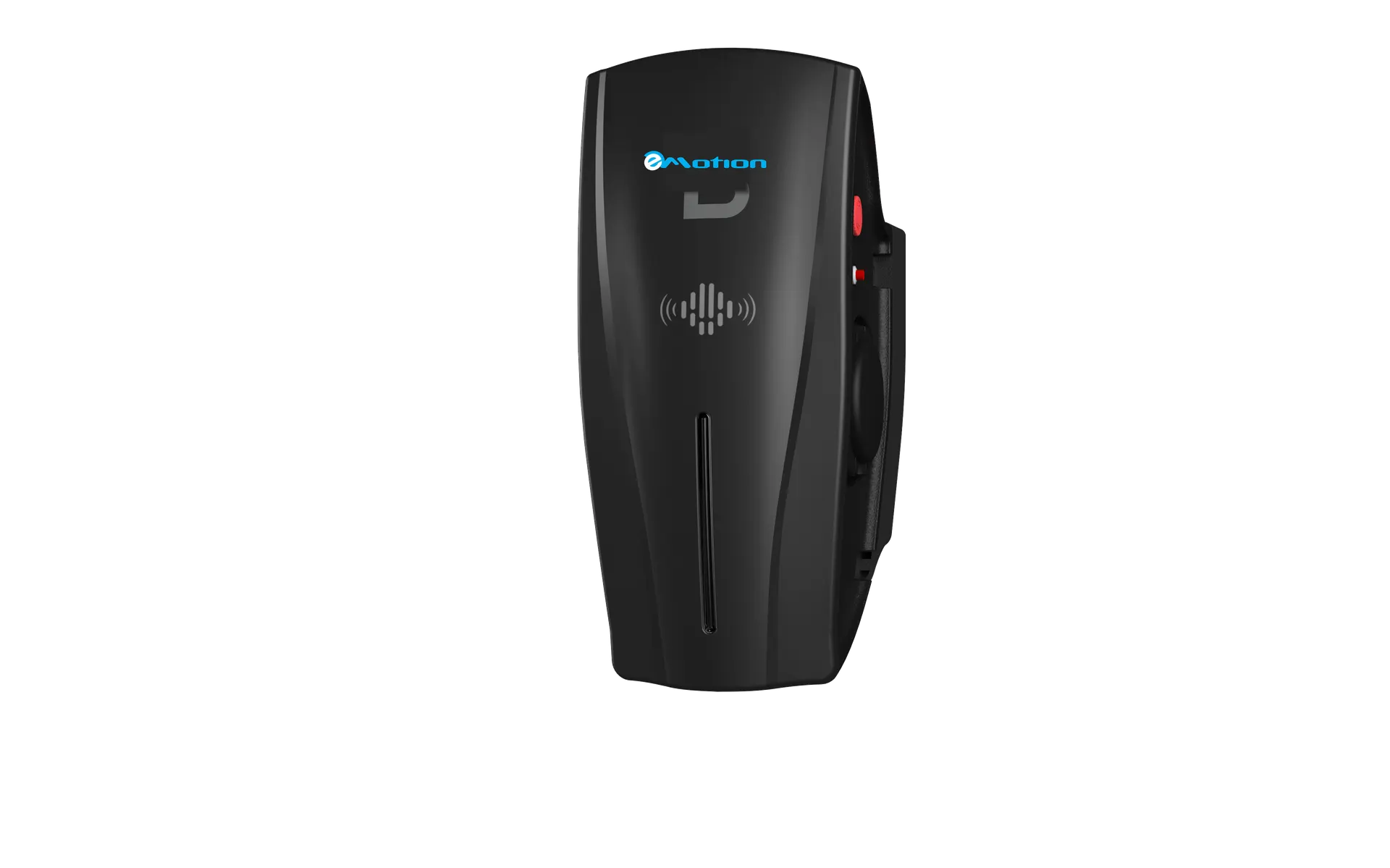

7.4kW Wall Charger
The eMotion 7.4kW charger is a reliable home charging solution for your EV. It runs on single-phase power, delivers up to 32 amps, and works with all European, Chinese and Japanese electric vehicles.
Just tap your RFID card to start charging. LED lights show you what’s happening at a glance. Built-in safety features protect against power issues, heat, and lightning.

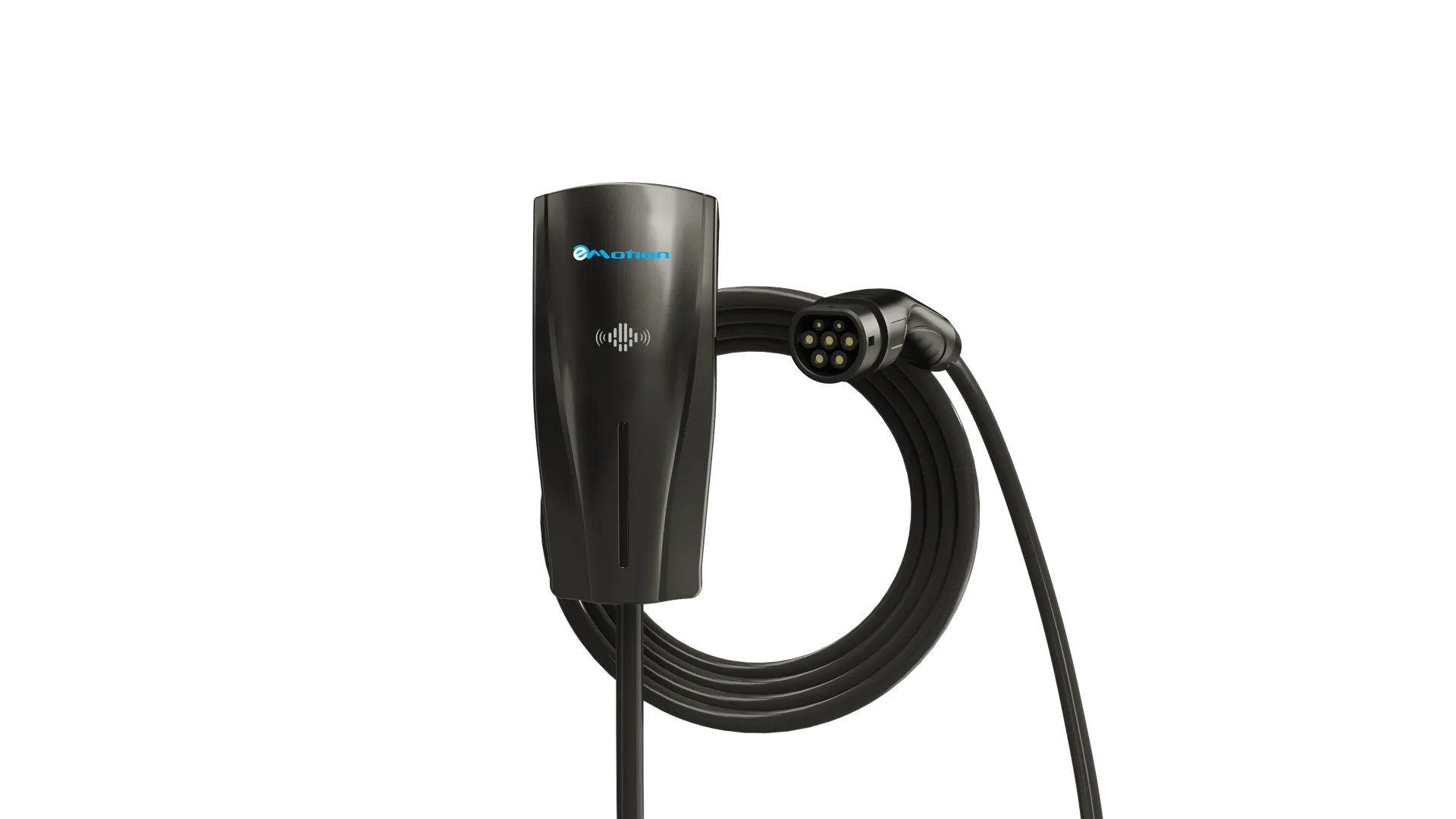

With a 5-meter Type 2 or Type 1 cable and weather-resistant design, it’s perfect for both indoor and outdoor use. Simple, safe, and built to last.
Technical Specifications
Specifications
- Power & Voltage7.4kW, AC230V single-phase, 50/60Hz
- CurrentInput/Output up to 32A
- EfficiencyNear 100%
- DisplayLED lights
- MeterBuilt-in metering chip
- Start MethodAuto-start / RFID card
- Socket TypeType 2
- Cable Length5m
- StandardsIEC61851-1, IEC61851-21-2
Protection & Safety
- Over/under voltage protection
- Emergency stop
- Overcurrent protection
- Over-temperature protection
- CP signal short circuit protection
- Lightning protection
- Contactor adhesion protection
Build & Environment
- Protection rating: IP55–IP65 (model dependent)
- Operating temp: -25°C to +55°C
- Storage temp: -40°C to +85°C
- Max altitude: <2000m
- Humidity: 95% non-condensing
Optional Features
- RFID support for access control
- App control
PUCSL Compliant
Meets all local regulatory standards for grid connection.
2-Year Warranty
Comprehensive hardware coverage for peace of mind.
Professional Installation
Certified engineers ensure safe and optimal setup.
