ACBusiness

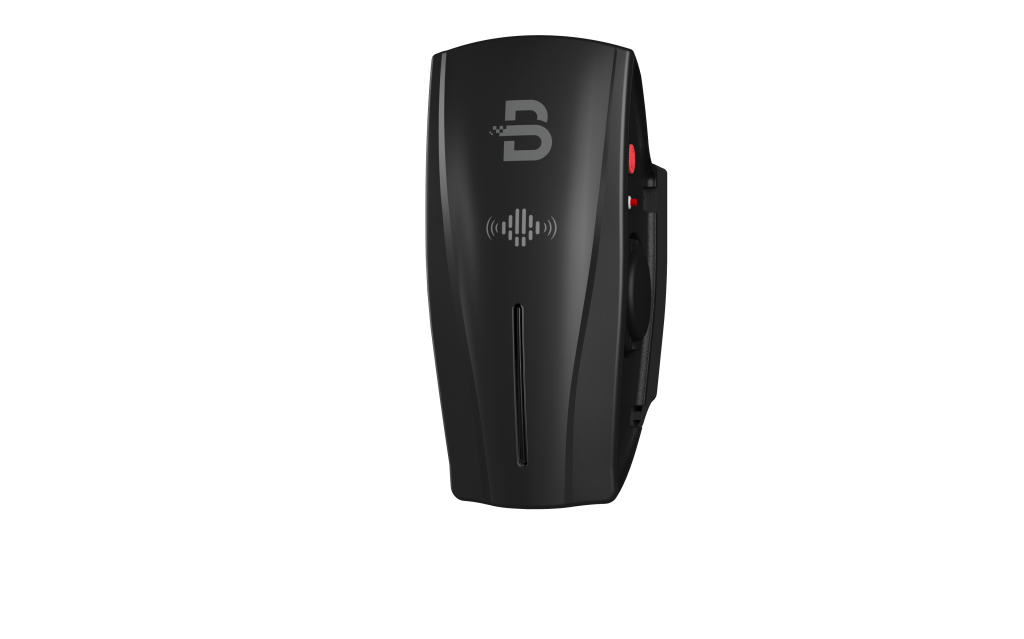

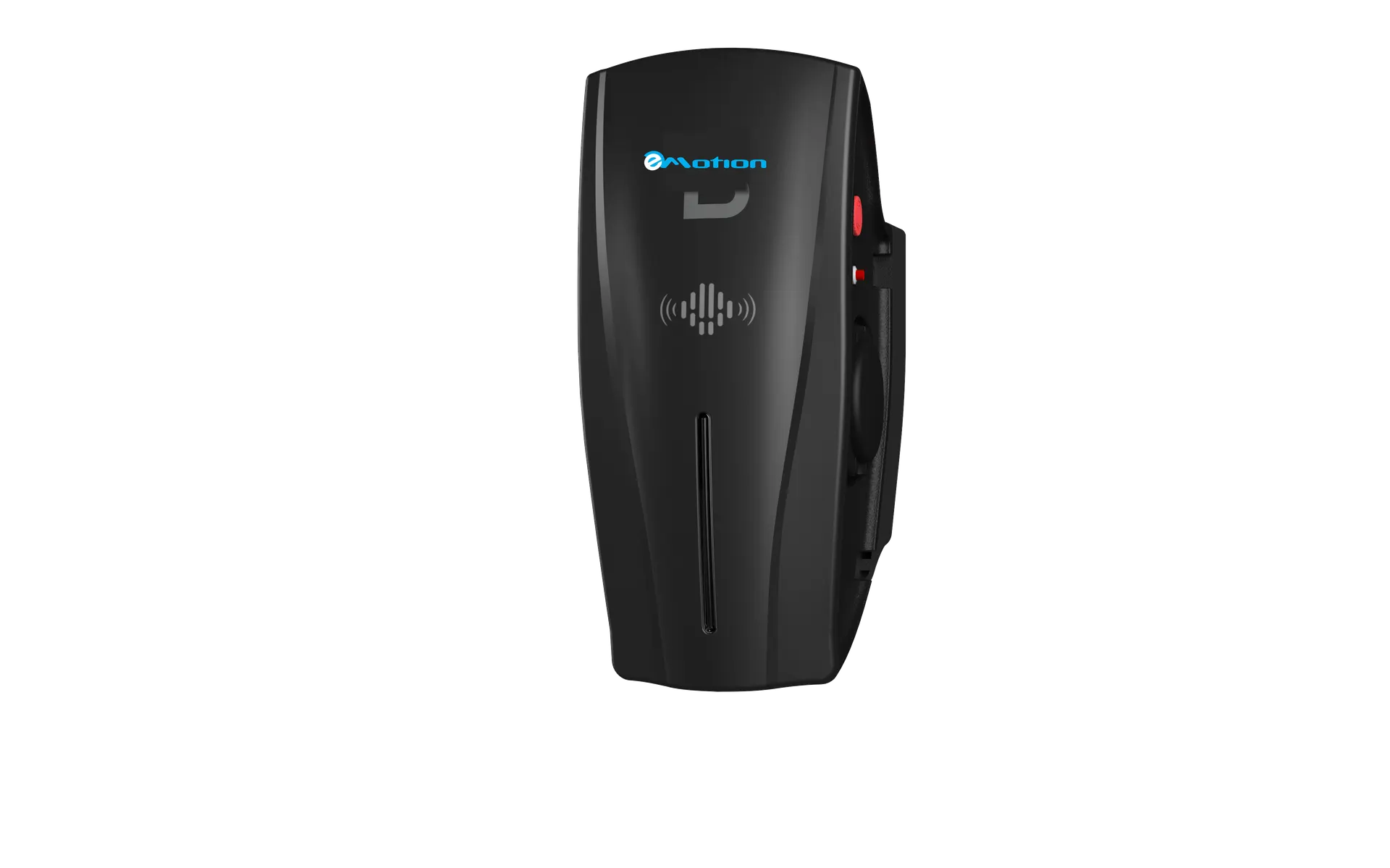

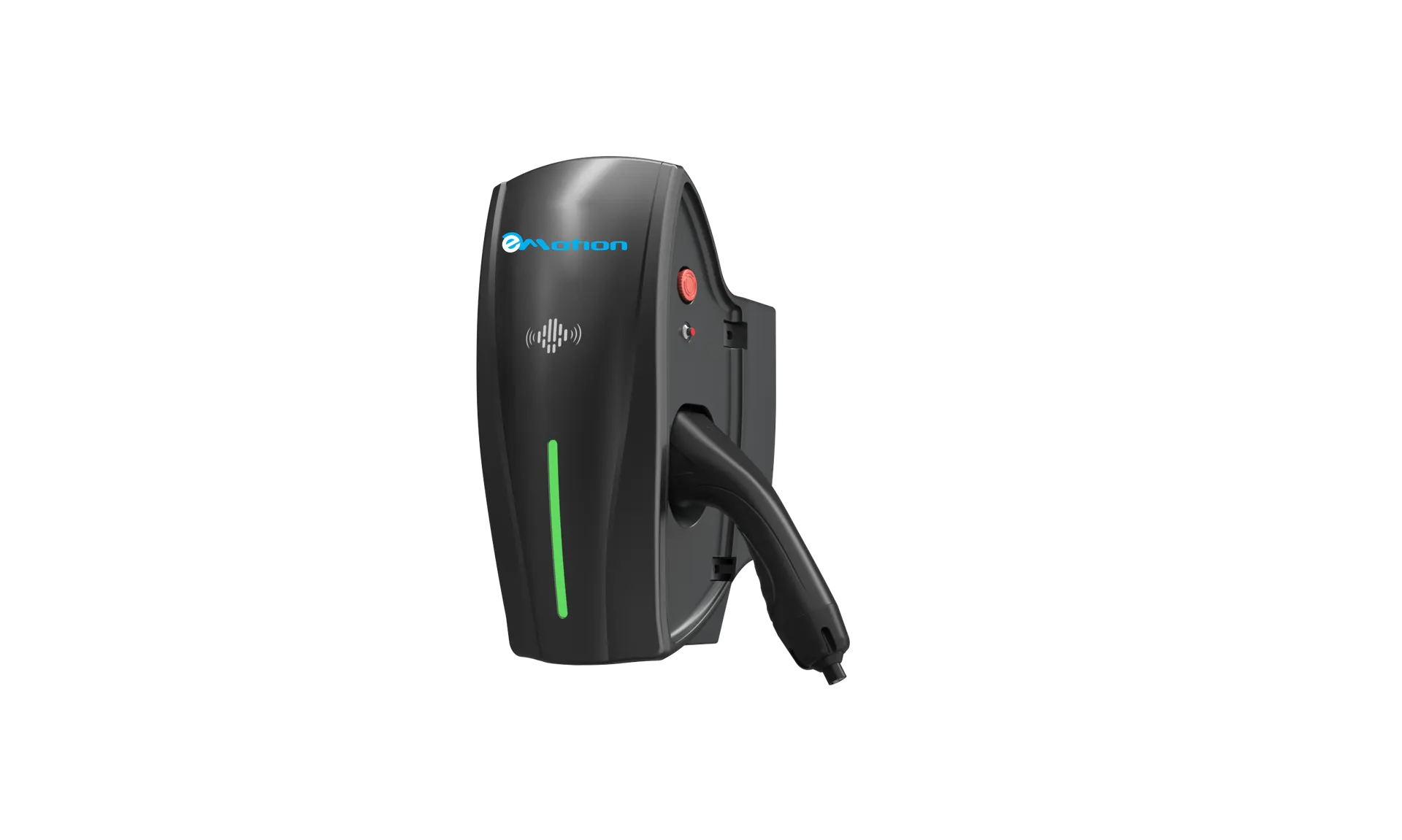

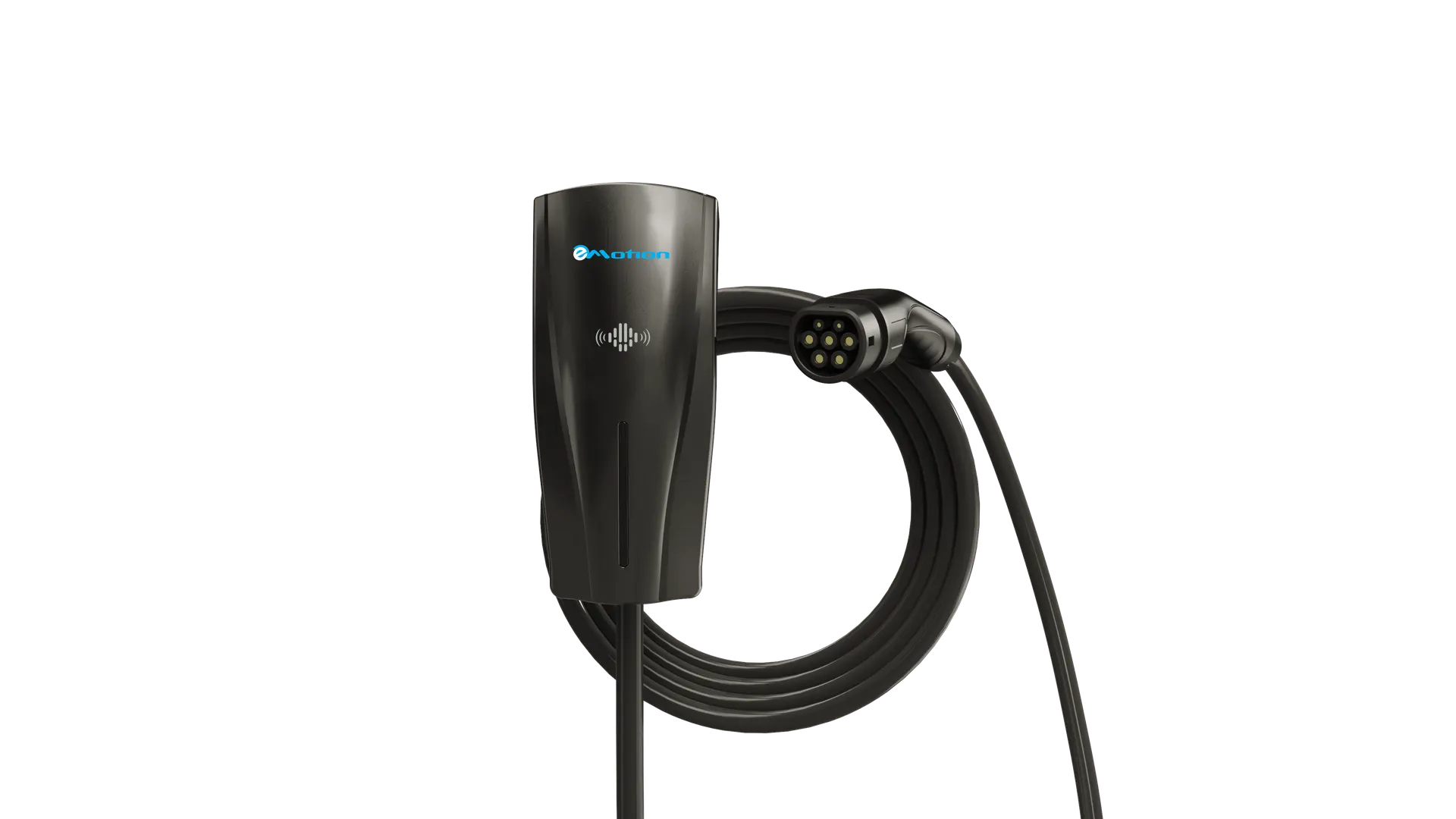

7.4kW Commercial Charger
A 7.4kW charger for offices, malls and public car parks. It runs on single-phase power, draws up to 32A and works with any EV that has a Type 2 or Type 1 connector.
It connects to the eMotion Charging Network for live monitoring, remote management and cashless payments. Drivers can start a session with an RFID card, LED lights show the charger's status, and metering is built in.
Technical specifications
Specifications
- Power & Voltage7.4kW, AC230V single-phase, 50/60Hz
- CurrentInput/Output up to 32A
- EfficiencyNear 100%
- DisplayLED lights
- MeterBuilt-in metering chip
- Start MethodeMotion Mobile App
- Socket TypeType 2
- Cable Length5m
- StandardsIEC61851-1, IEC61851-21-2
Protection & Safety
- Over/under voltage protection
- Emergency stop
- Overcurrent protection
- Over-temperature protection
- CP signal short circuit protection
- Lightning protection
- Contactor adhesion protection
Build & Environment
- Protection rating: IP55–IP65 (model dependent)
- Operating temp: -25°C to +55°C
- Storage temp: -40°C to +85°C
- Max altitude: <2000m
- Humidity: 95% non-condensing
PUCSL Compliant
Meets Sri Lankan regulations for connecting to the grid.
2-Year Warranty
Covers the charger hardware for two years.
Professional Installation
Installed and set up by our certified engineers.
