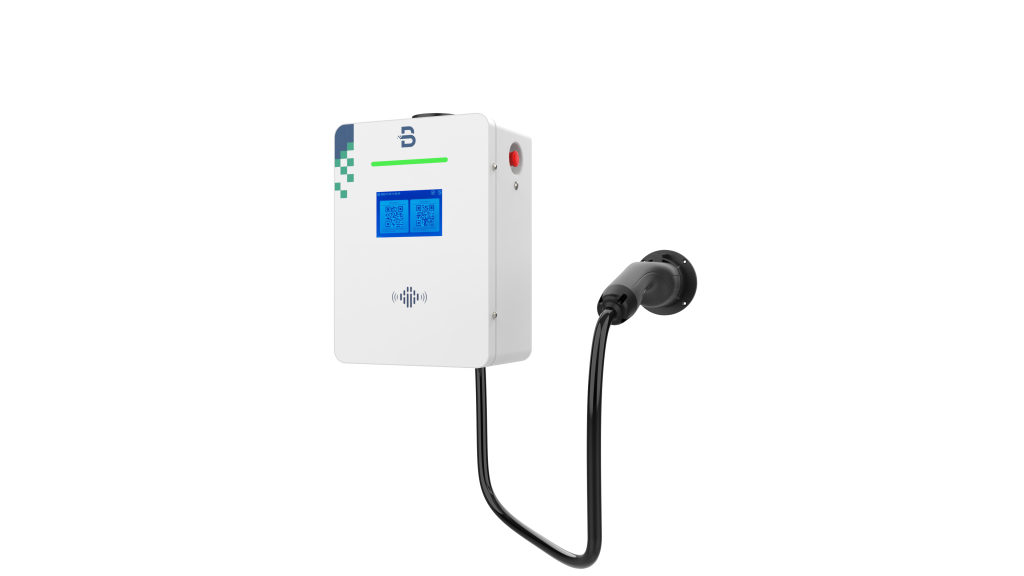

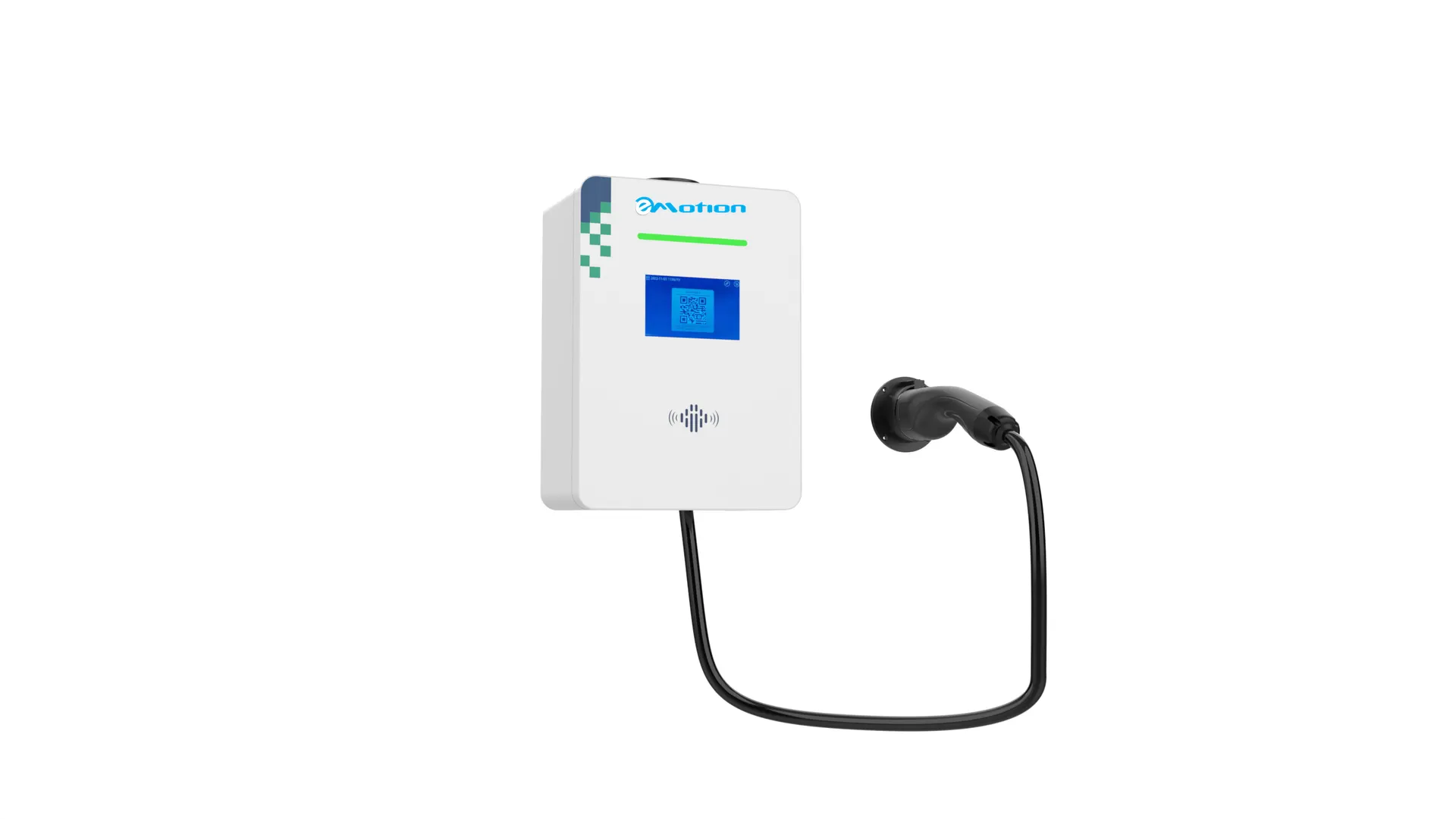

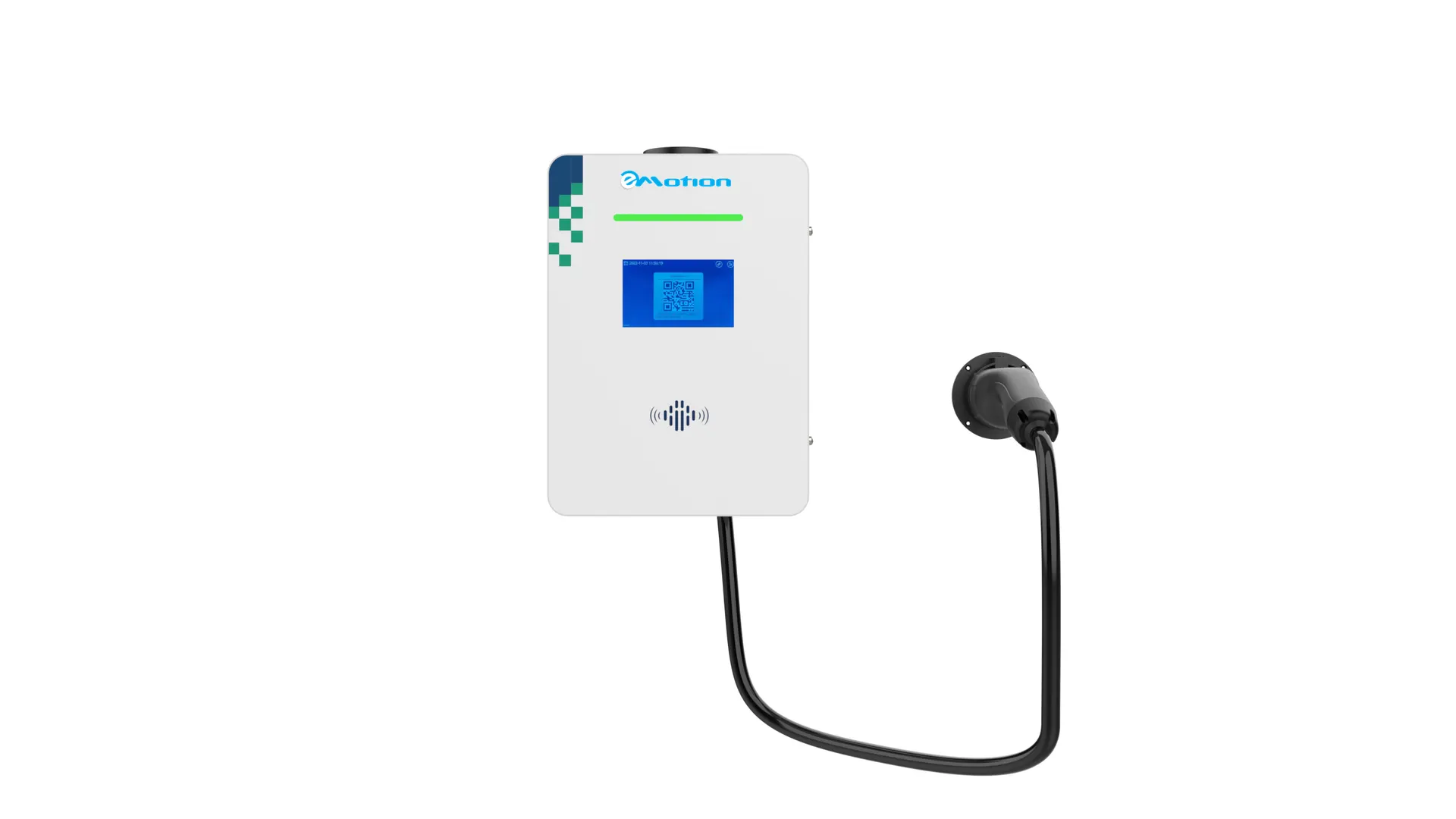

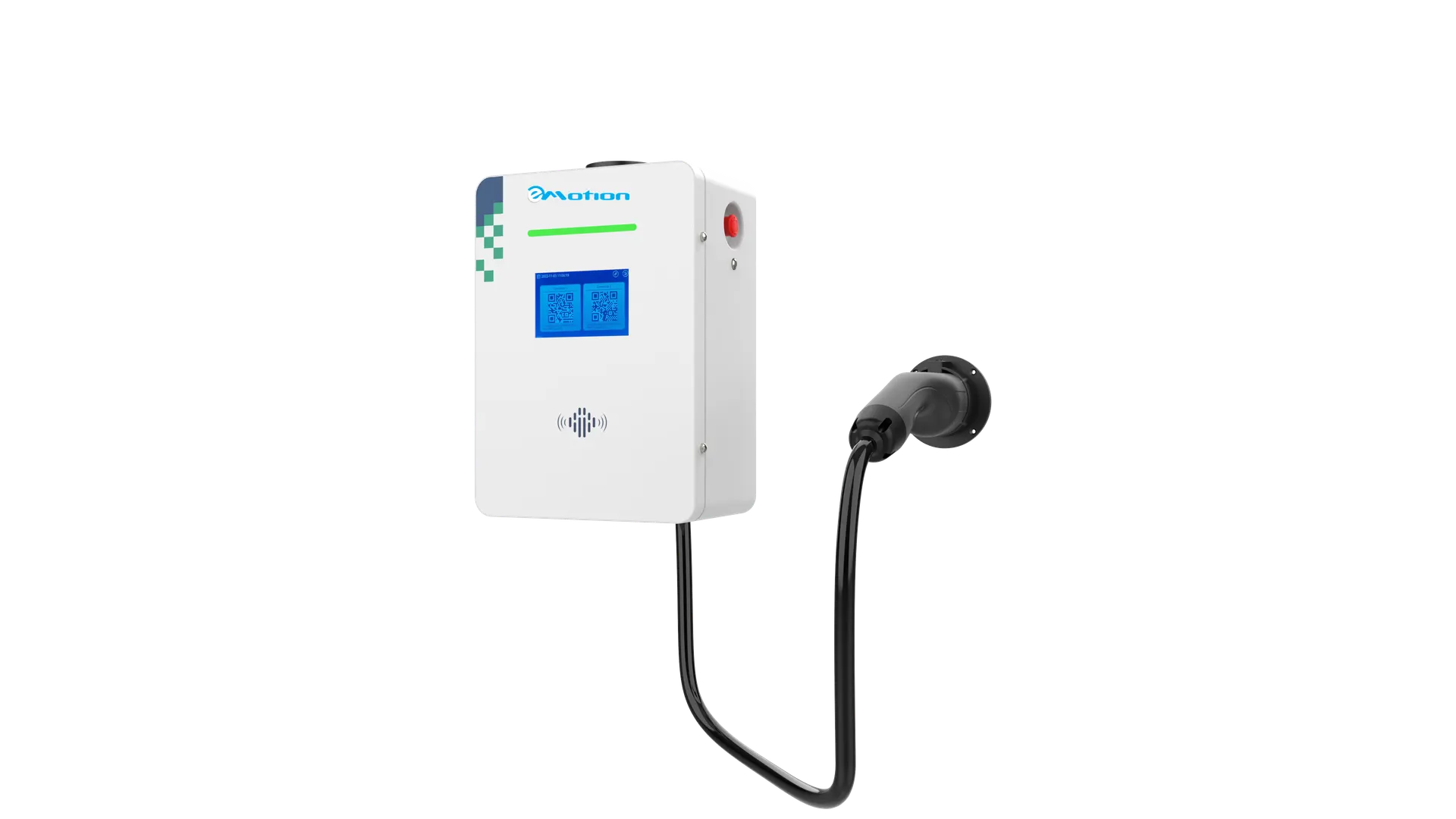

7.4kW Commercial AC Wallbox
A 7.4kW charger for commercial and public sites. It runs on single-phase AC230V, draws up to 32A, works with all standard EVs and comes in tethered or socket versions.
It has a 5-inch LCD screen with LED status lights, a built-in MID-certified meter for accurate billing and RFID access. It connects over Wi-Fi, Ethernet and Bluetooth, with optional 4G, and can be monitored remotely on the eMotion Charging Network.
It's protected against over- and under-voltage, overcurrent, overheating, CP faults and lightning, and has an emergency stop and contactor adhesion protection.
The unit is IP65 rated and works outdoors from -30°C to +55°C. The tethered model has a 5m cable and weighs 13kg.
Technical specifications
Power & Input
- Power: 7.4kW (single-phase)
- Input voltage: AC230V 1-Phase
- Frequency: 50/60Hz
- Charging current: 6–32A
Safety & Protection
- Over/under voltage protection
- Emergency stop function
- Overcurrent protection
- CP signal short circuit protection
- Over-temperature protection
- Lightning protection
- Contactor adhesion protection
Hardware & Connectivity
- Available in tethered and socket versions
- 5-meter cable (tethered model)
- Built-in MID-certified energy meter
- Five-inch LCD display with LED indicators
- Connectivity: Wi-Fi, Ethernet, Bluetooth
- RFID card access supported
- Optional 4G connectivity
- Controlled via the eMotion Charging App through the eMotion Network
Environmental & Build
- Protection rating: IP65
- Operating temperature: -30°C to +55°C
- Storage temperature: -40°C to +85°C
- Maximum altitude: <2000m
- Weight: 13kg (tethered) / 9.3kg (socket)
PUCSL Compliant
Meets Sri Lankan regulations for connecting to the grid.
2-Year Warranty
Covers the charger hardware for two years.
Professional Installation
Installed and set up by our certified engineers.
