20-40kW DC Wallbox Fast Charger

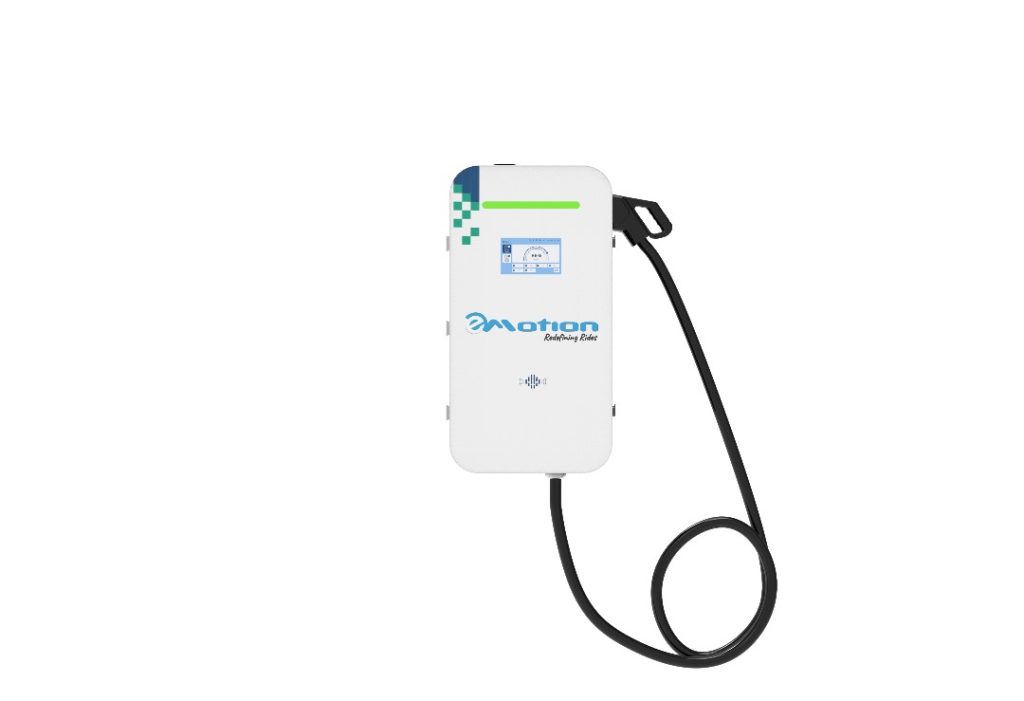

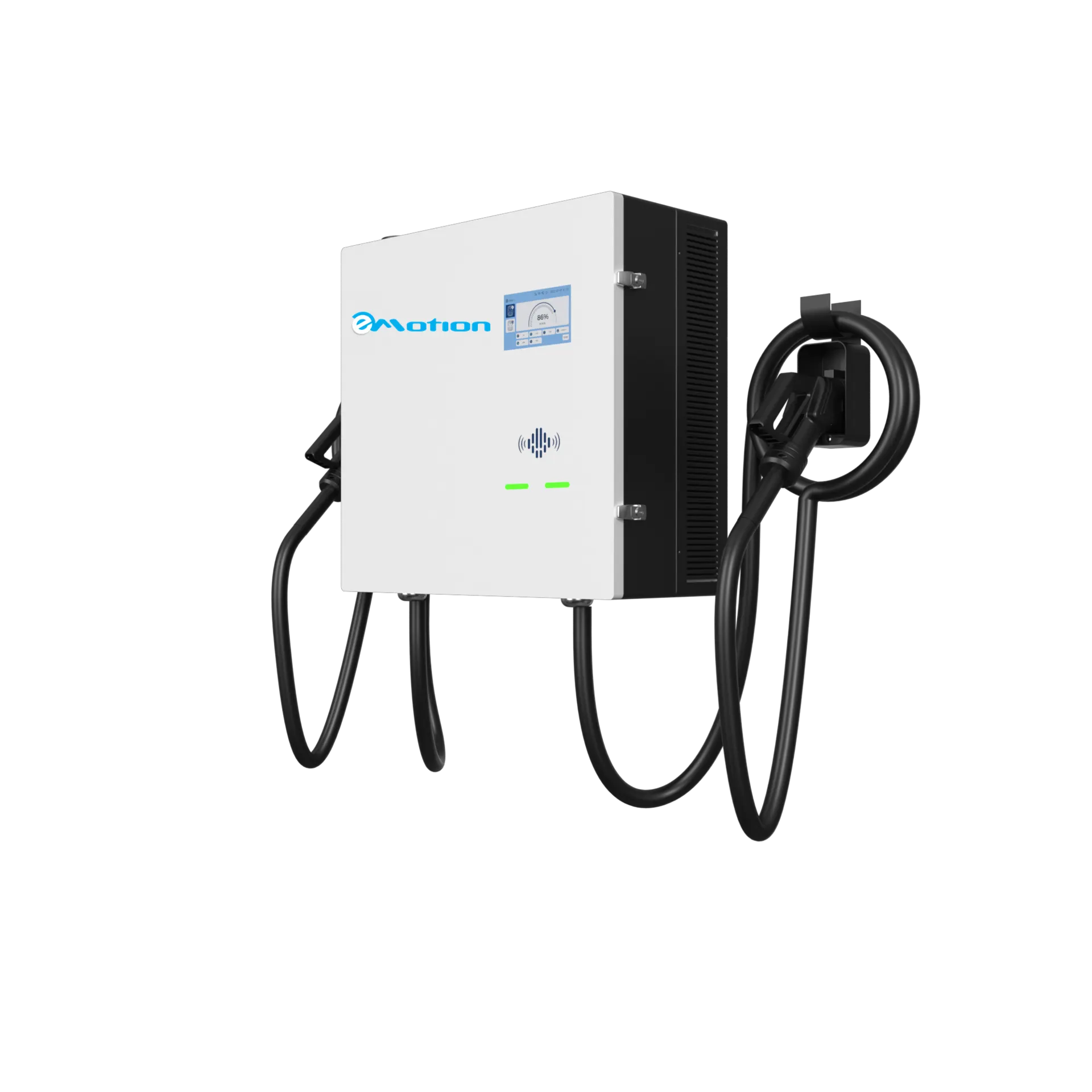

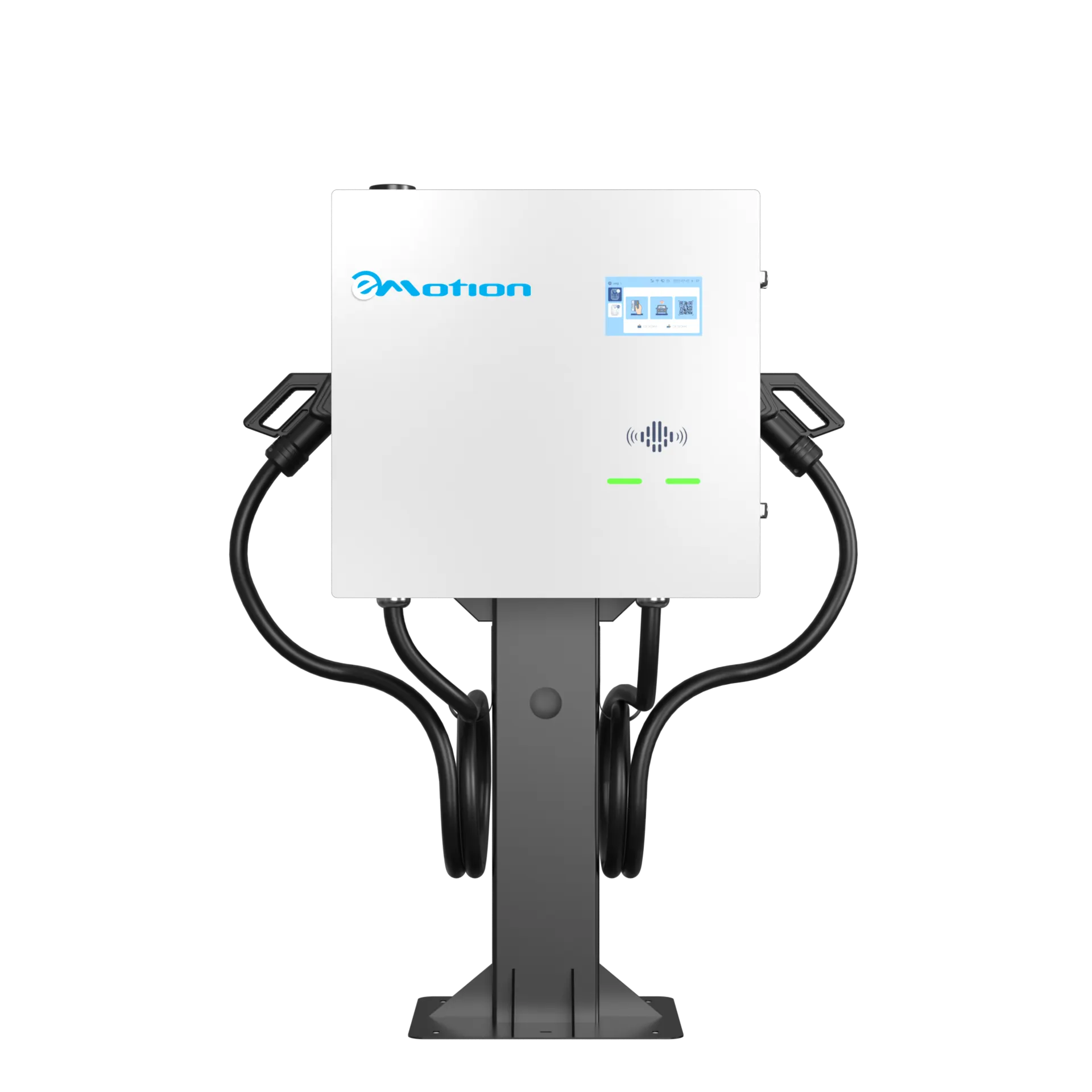

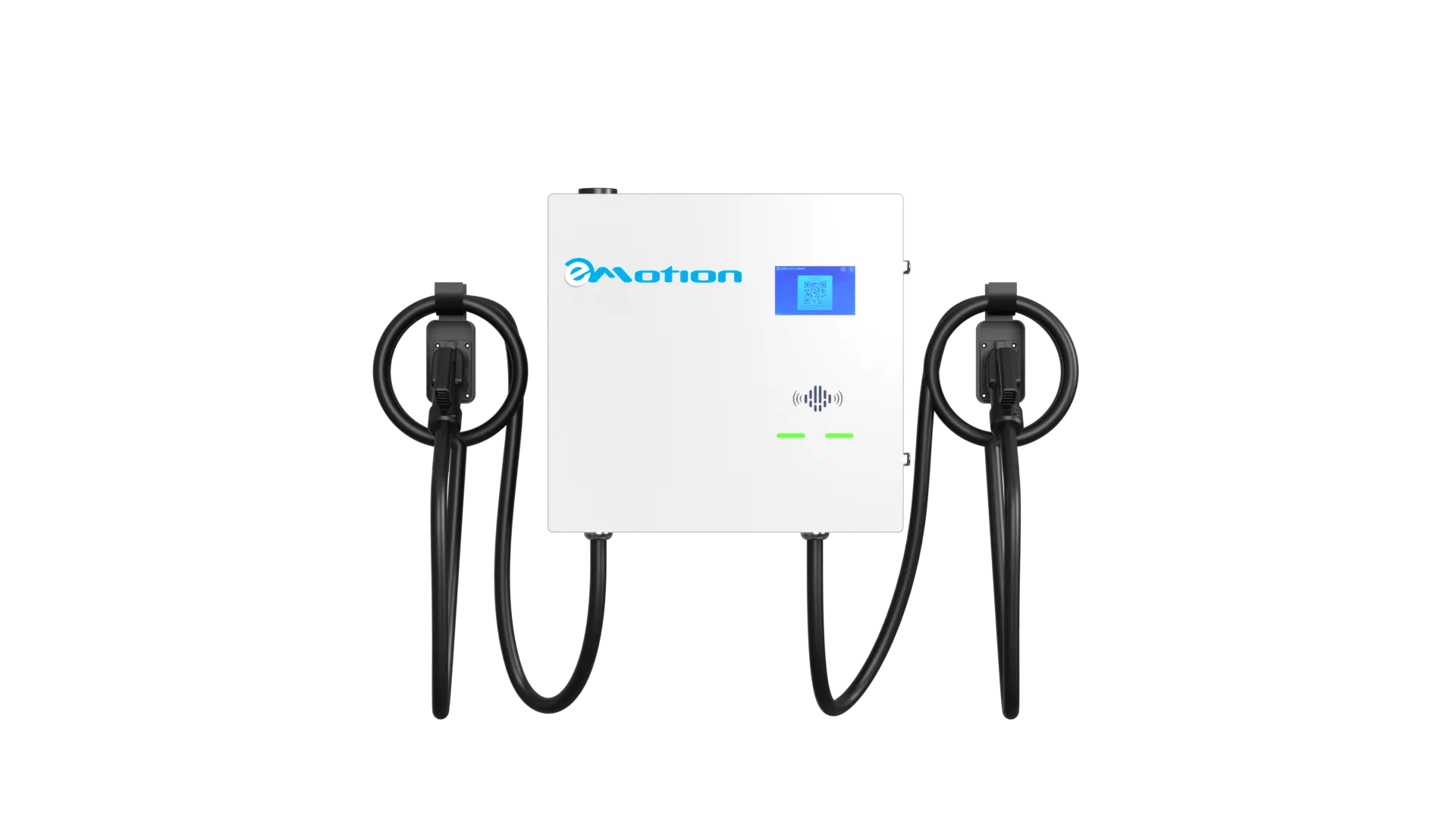

The eMotion Wall-mounted DC Fast Charger is a compact, high-efficiency charging solution designed for both indoor and outdoor commercial or semi-public locations. Available in 20kW and 40kW models, this charger supports one or two DC connectors including CCS1, CCS2, GBT, or NACS, making it compatible with a wide range of electric vehicles.
It features a 7-inch touchscreen with LED indicators for a smooth user experience, RFID access, and app-based control. With a sleek galvanized steel body and IP55 protection rating, it’s built for durability in demanding environments.
This charger connects via Ethernet, 4G, or Wi-Fi and integrates seamlessly with the eMotion Charging Network, enabling remote management, real-time monitoring, and automated cashless payments through the eMotion App.
Despite its small size, it delivers up to 133A and 1000V DC output, with high efficiency (≥95%) and low standby power use. Safety is ensured with full protection against over/under voltage, overcurrent, leakage, grounding faults, and surges.
Compact, powerful, and connected, the eMotion Wall-mounted DC Fast Charger is ideal for sites needing fast, reliable charging in limited space.
Technical Specifications
Power & Electrical
- Output power options: 20kW / 30kW / 40kW
- Input voltage: AC380V–415V, 3P+N+PE
- Rated input current:
- 20kW: 34A
- 30kW: 51A
- 40kW: 68A
- Input frequency: 50Hz / 60Hz
- Output voltage range: 150Vdc – 1000Vdc (CCS1 / CCS2 / GBT / NACS)
- Output current:
- 20kW: 0–66.5A
- 30kW: 0–100A
- 40kW: 0–133A
- Power factor: ≥0.99 (at 100% load)
- Efficiency: ≥95%
- Standby power consumption: ≤15W
Hardware & Design
- Mounting: Wall-mounted
- Shell material: Galvanized steel
- Dimensions (L×W×H): 450 × 250 × 850 mm
- Weight:
- 20kW: ≤70kg
- 30kW / 40kW: ≤80kg
- Display: 7-inch LCD touchscreen with LED indicators
- Cable routing: Bottom inlet and outlet wiring
- Charging outlets: Single or dual (CCS1 / CCS2 / GBT / NACS)
- Cable length: 5 meters
Connectivity & Control
- Network interface: Ethernet / 4G / Wi-Fi
- Access methods: RFID card, App-based control
- Platform: Connected to the eMotion Charging Network
- Control: eMotion Charging App
User Interface & Compliance
- Interface: Emergency stop button, LED status lights, card swiping, touchscreen
- Standards:
- EN IEC 61851-1:2019, IEC 61851-1:2017
- EN 61851-23:2014, EN 61851-24:2014
- EN IEC 61000-6-2:2019, EN IEC 61000-6-4:2019
- EN IEC 61851-21-2:2021
Environmental & Safety
- Operating temperature: –30°C to +50°C
- Storage temperature: –30°C to +85°C
- Working humidity: 5% – 95% (non-condensing)
- Altitude: <2000m
- Protection level: IP55
- Impact resistance: IK10 (IK08 for screen)
- Cooling method: Forced-air cooling
- Safety features:
- Over/under voltage protection
- Overload protection
- Current leakage protection
- Grounding protection
- Over-temperature protection
- Lightning and surge protection
PUCSL Compliant
Meets all local regulatory standards for grid connection.
2-Year Warranty
Comprehensive hardware coverage for peace of mind.
Professional Installation
Certified engineers ensure safe and optimal setup.
