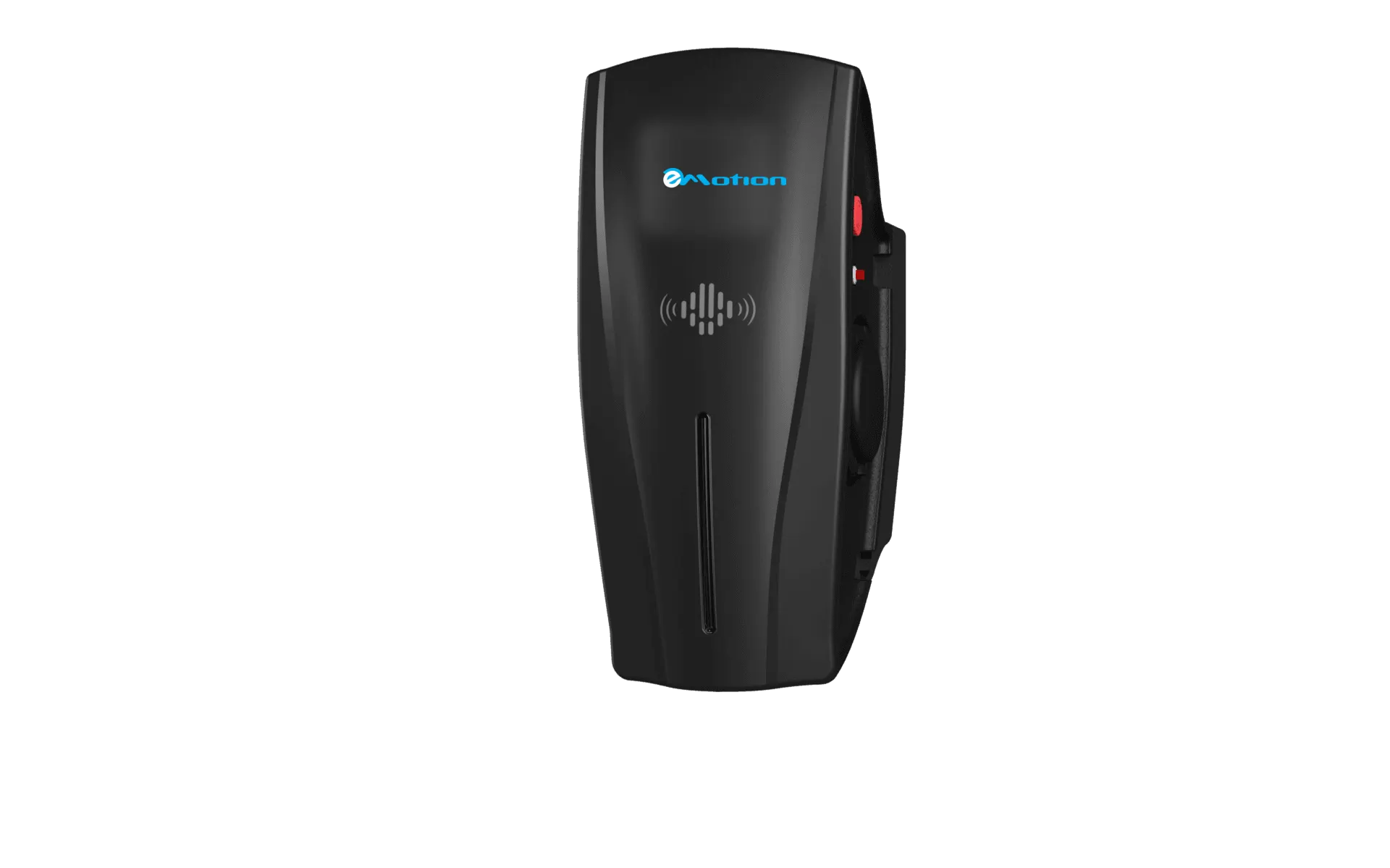

11kW-22kW Wall Charger

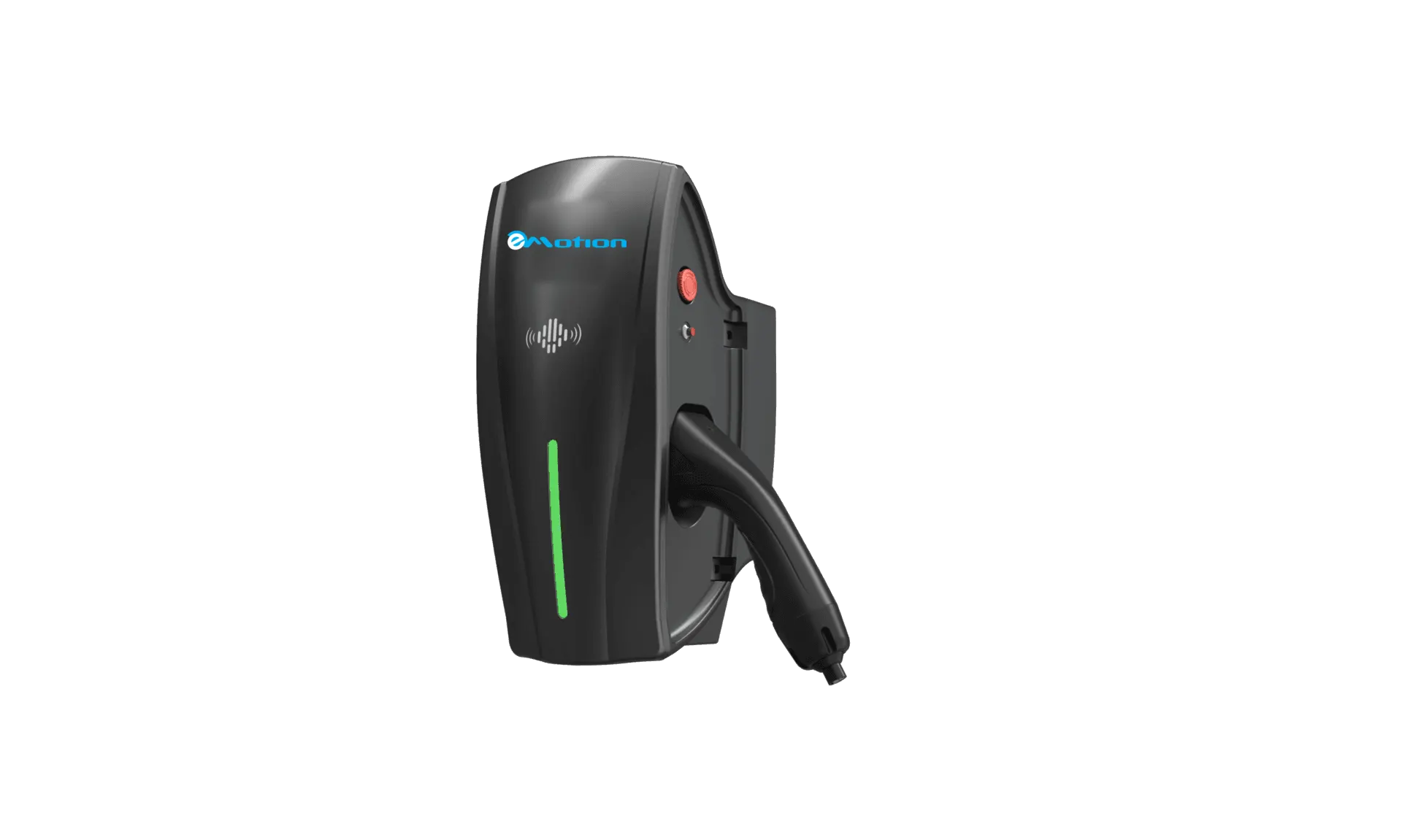

The eMotion 11kW and 22kW chargers are powerful three-phase solutions for fast, smart EV charging at home or in commercial spaces. They support up to 32 amps and come with RFID access, LED indicators, and built-in energy metering.
With Bluetooth, Wi-Fi, and app control, you can monitor and manage charging remotely. Safety features cover voltage, current, temperature, and surge protection.

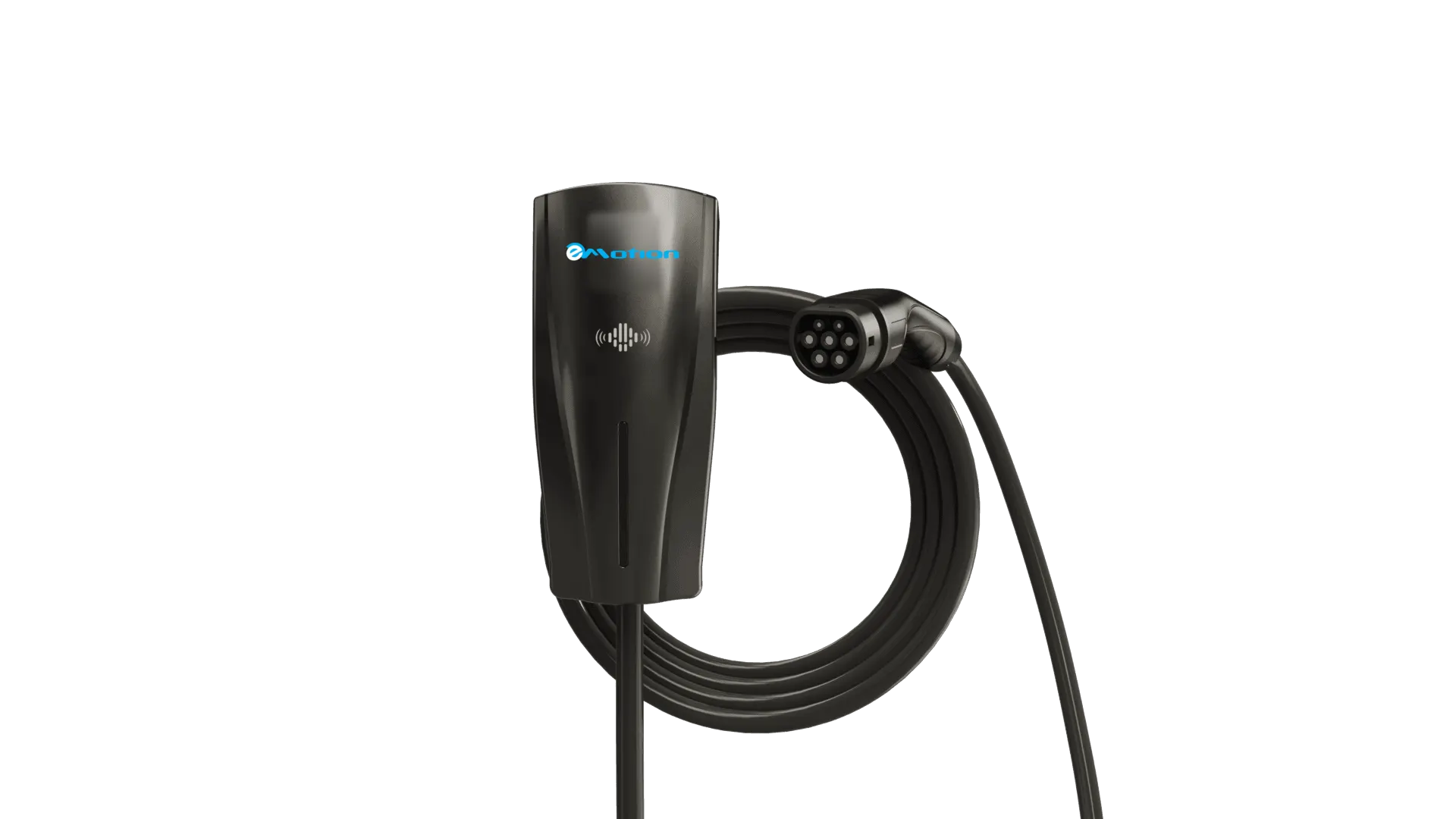

Durable and weather-resistant, they include a 5-meter Type 2 cable and meet all key international standards.
Technical Specifications
Specifications
- Power & Voltage11kW or 22kW, AC400V 3-phase, 50/60Hz
- Current Options16A or 32A
- DisplayLED lights
- MeterIntegrated metering chip
- Socket TypeType 2
- Cable Length5m
- Start MethodAuto-start / RFID card
- Efficiency~100%
- StandardsIEC61851-1, IEC61851-21-2
Protection & Safety
- Over/Under voltage protection
- Overcurrent & over-temperature protection
- CP signal short circuit protection
- Lightning & contactor adhesion protection
- Emergency stop
Optional Features
- RFID support for access control
- App control
Build & Environment
- IP55/IP65 protection
- Operating temp: -25°C to +55°C
- Storage temp: -40°C to +85°C
- Max altitude: <2000m
- Humidity: 95% non-condensing
PUCSL Compliant
Meets all local regulatory standards for grid connection.
2-Year Warranty
Comprehensive hardware coverage for peace of mind.
Professional Installation
Certified engineers ensure safe and optimal setup.
