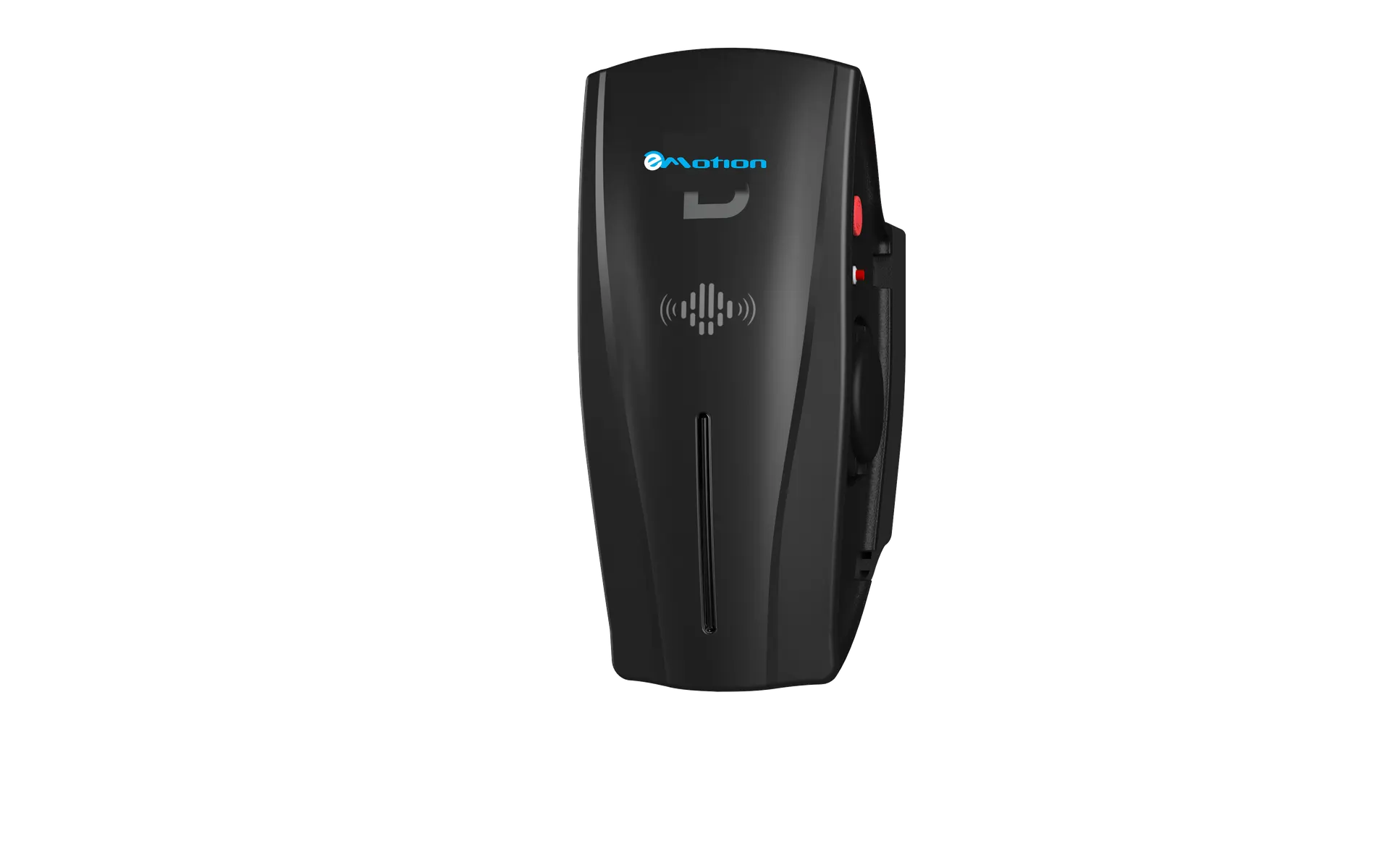

11-22kW Commercial AC Charger
The eMotion 11kW and 22kW chargers are high-performance solutions designed for public and commercial use. Powered by a robust 3-phase AC connection, they deliver fast, efficient charging for all Type 2 electric vehicles.
Ideal for car parks, businesses, and charging hubs, these chargers connect to the eMotion Charging Network for real-time monitoring, remote control, and automated cashless payments. Users can start charging via RFID, with LED indicators providing clear status updates.
Built for reliability and safety, they feature full protection systems and a durable, weather-resistant design.
Technical Specifications
Specifications
- Power & Voltage11kW or 22kW, AC400V 3-phase, 50/60Hz
- Current Options16A or 32A
- DisplayLED lights
- MeterIntegrated metering chip
- Socket TypeType 2
- Cable Length5m
- Start MethodeMotion Charging App
- Efficiency~100%
- StandardsIEC61851-1, IEC61851-21-2
Protection & Safety
- Over/Under voltage protection
- Overcurrent & over-temperature protection
- CP signal short circuit protection
- Lightning & contactor adhesion protection
- Emergency stop
Build & Environment
- IP55/IP65 protection
- Operating temp: -25°C to +55°C
- Storage temp: -40°C to +85°C
- Max altitude: <2000m
- Humidity: 95% non-condensing
PUCSL Compliant
Meets all local regulatory standards for grid connection.
2-Year Warranty
Comprehensive hardware coverage for peace of mind.
Professional Installation
Certified engineers ensure safe and optimal setup.
