eMotion Charging

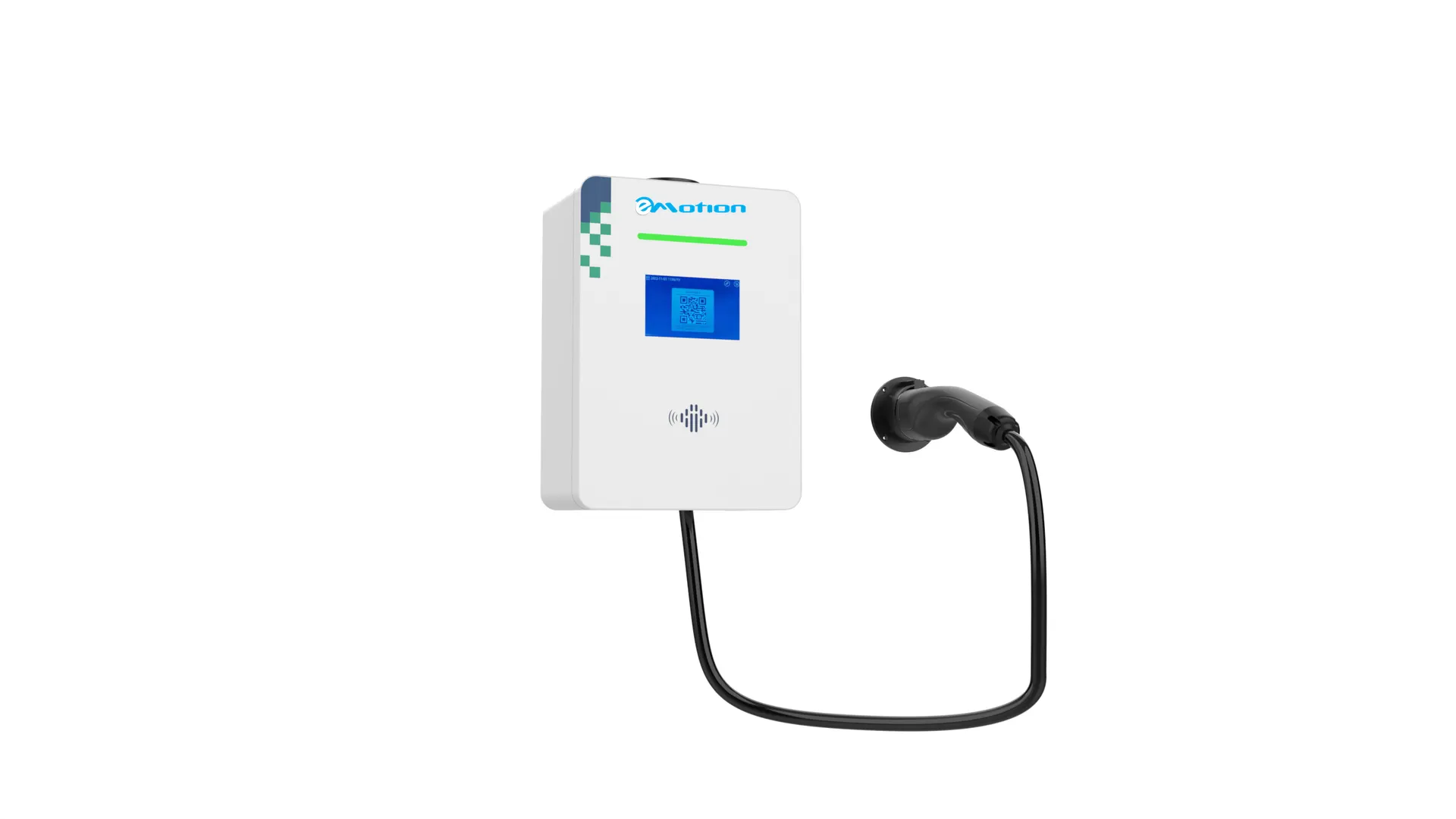

11-22kW Commercial AC Wallbox — view 1
ACBusiness

11-22kW Commercial AC Wallbox

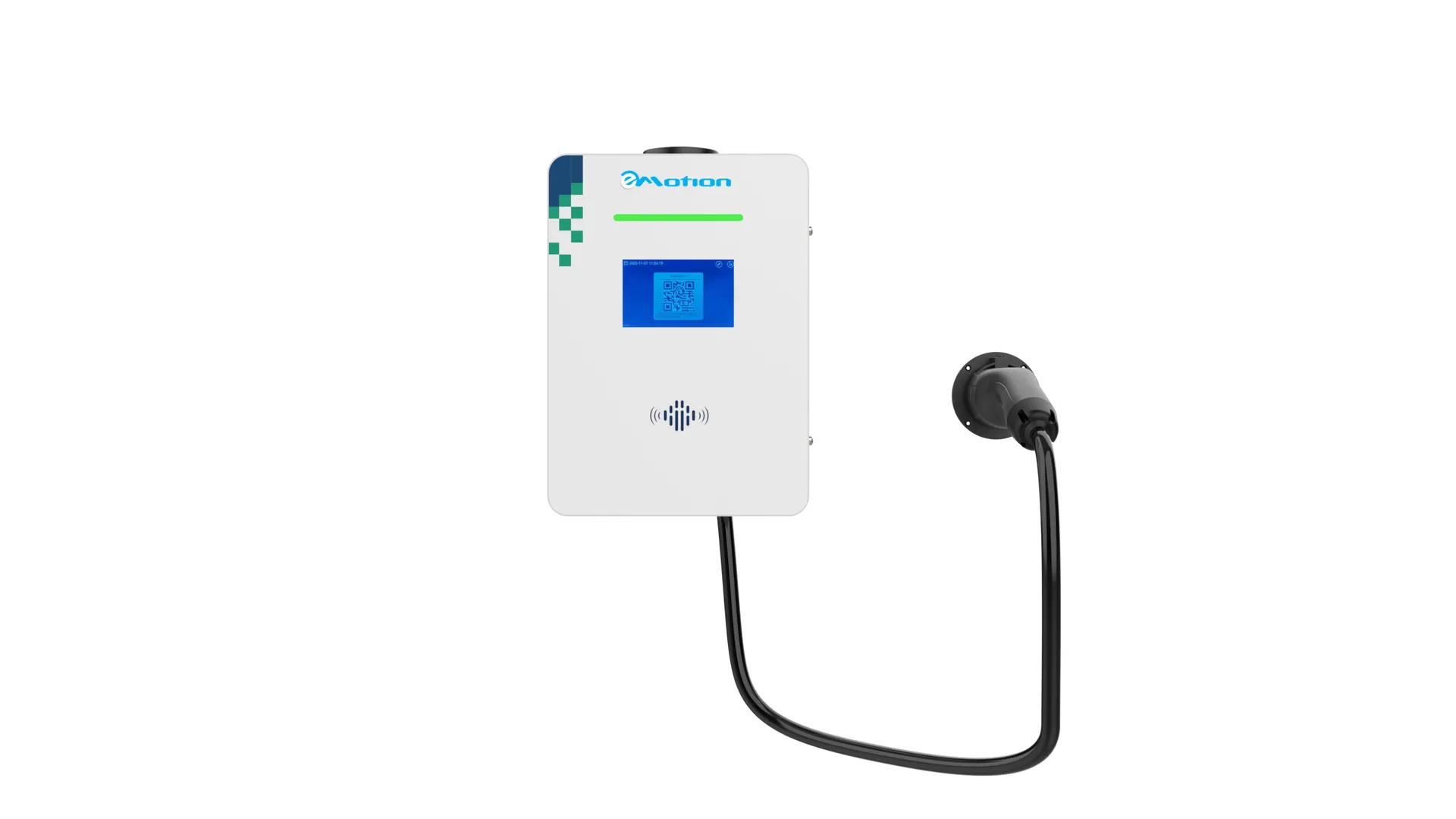

The eMotion 11kW and 22kW wall-mounted chargers are high-performance solutions designed for fast, reliable EV charging in commercial, public, and residential settings. Powered by a robust three-phase AC400V connection, they support up to 32 amps and are compatible with all Type 2 electric vehicles.

Available in both tethered and socket versions, these chargers feature a 5-inch LCD screen with LED indicators, RFID access, and a built-in MID-certified energy meter for accurate billing and usage tracking. Connectivity includes Wi-Fi, Ethernet, Bluetooth, and optional 4G, all integrated with the eMotion Charging Network and eMotion Charging App for remote monitoring, control, and automated cashless payments.

With full safety protection, IP65-rated weather resistance, and a sleek, durable design, the eMotion wall charger is built to perform in demanding environments while offering a seamless charging experience.

Enquire Now

Technical Specifications

Power & Input

  • Power options: 11kW (3-phase 16A) or 22kW (3-phase 32A)
  • Input voltage: AC400V 3-Phase
  • Frequency: 50/60Hz
  • Charging current: 6–32A

Hardware & Connectivity

  • 5-meter cable
  • Built-in MID-certified energy meter
  • Five-inch LCD display with LED indicators
  • Connectivity: Wi-Fi, Ethernet, Bluetooth
  • RFID card access supported
  • Optional 4G connectivity
  • Controlled via the eMotion Charging App through the eMotion Network

Safety & Protection

  • Over/under voltage protection
  • Emergency stop function
  • Overcurrent protection
  • CP signal short circuit protection
  • Over-temperature protection
  • Lightning protection
  • Contactor adhesion protection

Environmental & Build

  • Protection rating: IP65
  • Operating temperature: -30°C to +55°C
  • Storage temperature: -40°C to +85°C
  • Maximum altitude: <2000m
  • Weight: 13kg (tethered) / 9.3kg (socket)

PUCSL Compliant

Meets all local regulatory standards for grid connection.

2-Year Warranty

Comprehensive hardware coverage for peace of mind.

Professional Installation

Certified engineers ensure safe and optimal setup.
