60-240kW DC Fast Charger

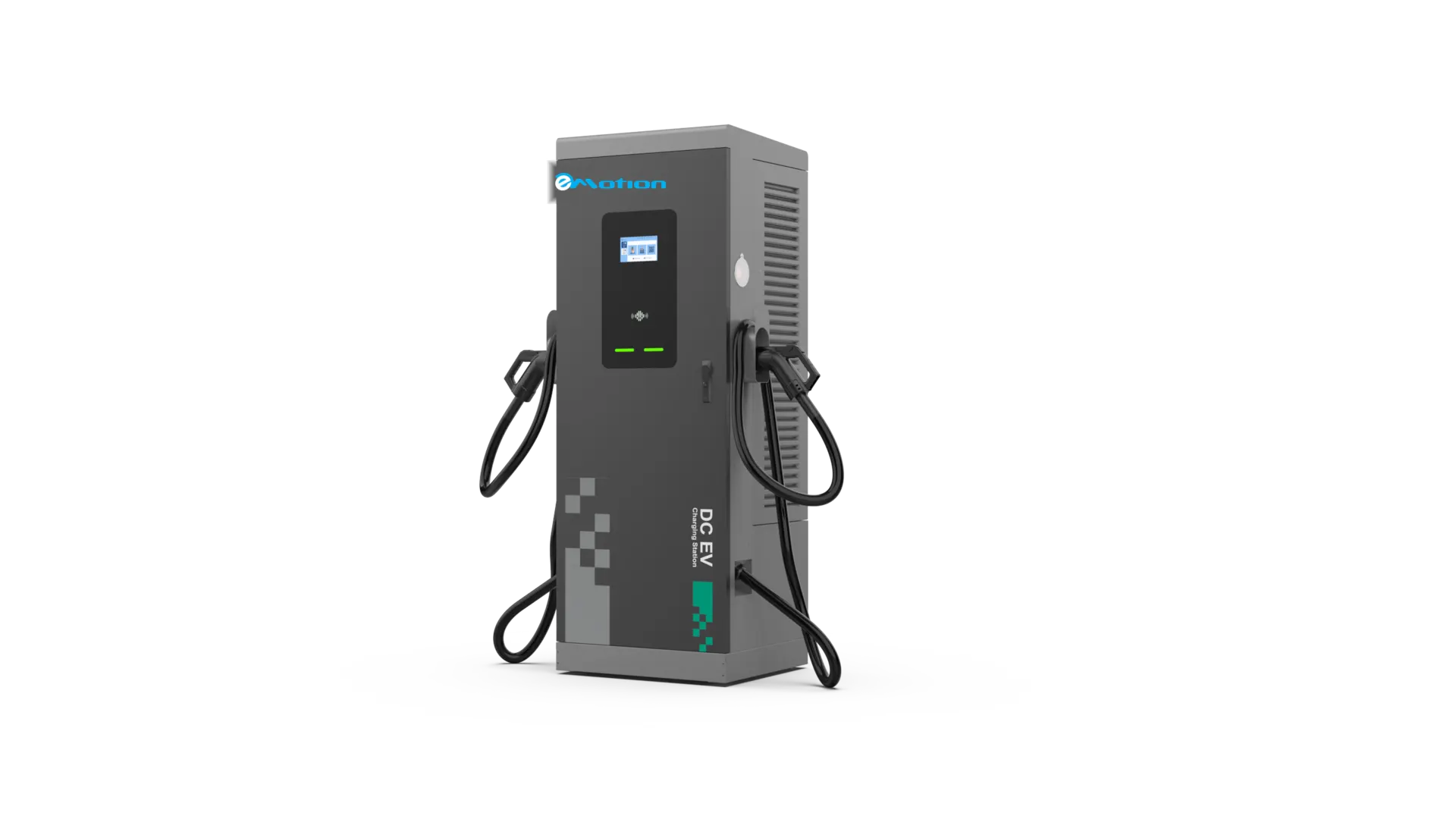

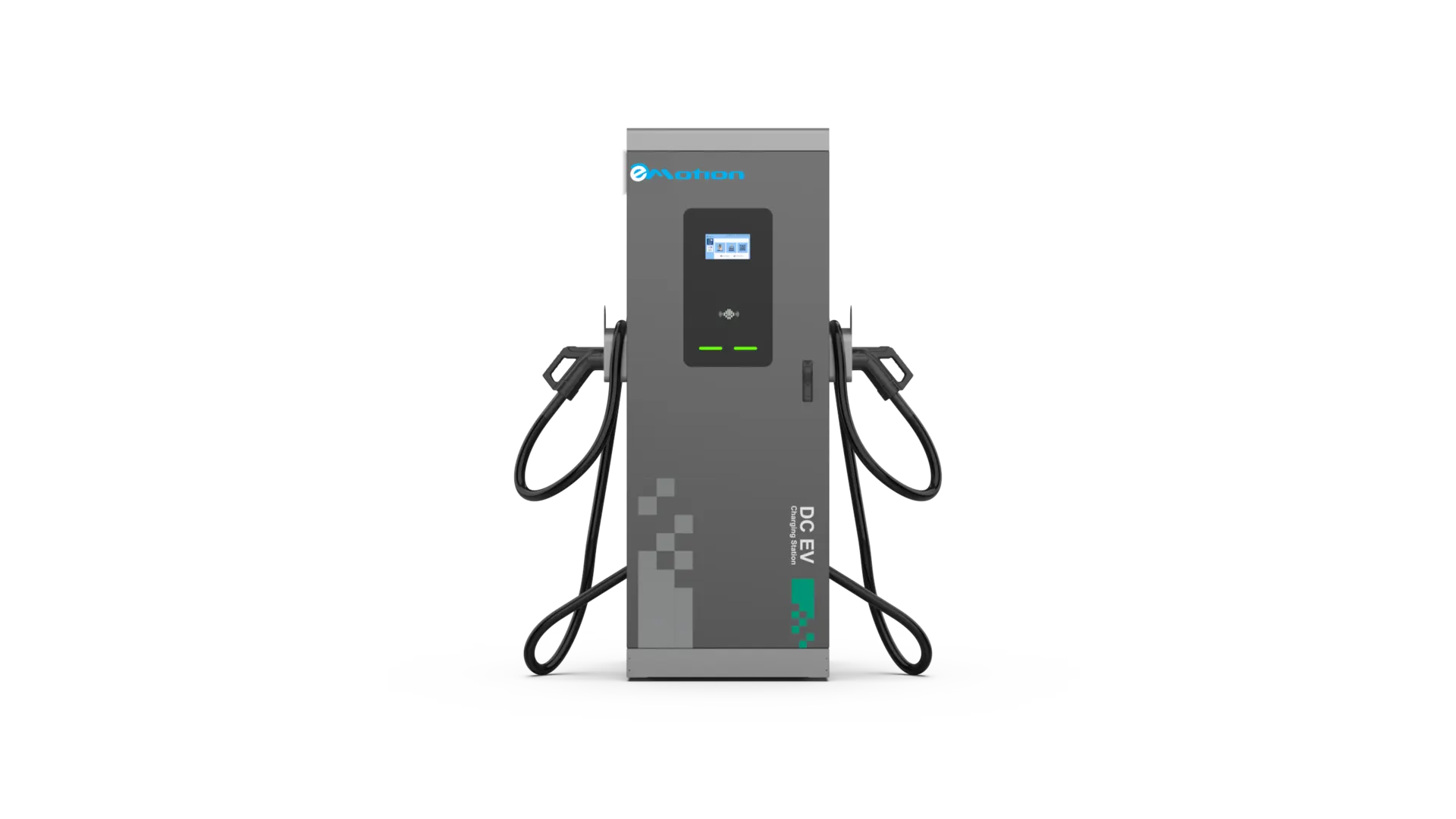

The eMotion DC Fast Charger is a high-capacity, floor-standing charging solution designed for commercial and public EV infrastructure. Available in 60kW, 90kW, and 120kW variants, it supports a wide range of vehicles through CCS1, CCS2, CHAdeMO, GBT, and NACS connectors. Each model features a 2x 5-meter charging cable, robust galvanised steel housing, and a large 7-inch LCD touchscreen with LED indicators for a clear and interactive user experience.

With support for RFID and mobile app access, the charger connects via Ethernet, 4G, or Wi-Fi and is fully integrated into the eMotion Charging Network. All functionality, including monitoring and control, is managed through the eMotion Charging App.

This charger is an ideal solution for fleet operators, service stations, and high-traffic EV hubs that demand performance, durability, and seamless network connectivity.

Get in touch to get yours today!

Technical Specs

  • Power & Electrical
    • Power output options: 60kW / 90kW / 120kW
    • AC input voltage: AC380V–415V, 3P+N+PE
    • Input current: 102A (60kW), 152A (90kW), 203A (120kW)
    • Input frequency: 50Hz / 60Hz
    • Output voltage range:
      • CCS1 / CCS2 / GBT / NACS: 150Vdc–1000Vdc
      • CHAdeMO: 150Vdc–500Vdc
    • Output current:
      • CCS1 / CCS2 / NACS: up to 250A
      • GBT: up to 250A
      • CHAdeMO: up to 125A
    • Efficiency: ≥95%
    • Power factor: ≥0.99 (at 100% load)
    • Energy consumption (idle): ≤24W
  • Hardware & Design
    • Installation: Floor-standing
    • Shell material: Galvanized steel
    • Dimensions (L×W×H): 700 × 520 × 1800 mm
    • Weight: ≤290kg (60kW), ≤310kg (90kW), ≤330kg (120kW)
    • Charging outlets: Single (CCS1 / CCS2 / CHAdeMO / GBT / NACS)
    • Cable length: 5 meters
    • Display: 7-inch LCD touchscreen with LED indicators
    • Cable routing: Bottom inlet, top outlet
  • Connectivity & Control
    • Network: Ethernet / Wi-Fi / 4G
    • Access control: RFID card / eMotion Charging App
    • Platform: Connected to the eMotion Charging Network
  • User Interface & Compliance
    • Interface: Emergency stop button, LED status lights, card swiping, touchscreen
    • Standards:
      • EN IEC 61851-1:2019, IEC 61851-1:2017
      • EN 61851-23:2014, EN 61851-24:2014
      • EN IEC 61000-6-2:2019, EN IEC 61000-6-4:2019
      • EN IEC 61851-21-2:2021
  • Environmental & Safety
    • Protection level: IP55
    • Impact resistance: IK10 (IK08 for screen)
    • Cooling method: Forced-air cooling
    • Working temperature: –30°C to +50°C
    • Storage temperature: –30°C to +85°C
    • Humidity: 5%–95% non-condensing
    • Max altitude: <2000m
    • Security:
      • Over/under voltage protection
      • Overload protection
      • Current leakage protection
      • Grounding protection
      • Over-temperature protection
      • Lightning/surge protection
  • Power & Electrical
    • Power output options: 60kW / 90kW / 120kW
    • AC input voltage: AC380V–415V, 3P+N+PE
    • Input current: 102A (60kW), 152A (90kW), 203A (120kW)
    • Input frequency: 50Hz / 60Hz
    • Output voltage range:
      • CCS1 / CCS2 / GBT / NACS: 150Vdc–1000Vdc
      • CHAdeMO: 150Vdc–500Vdc
    • Output current:
      • CCS1 / CCS2 / NACS: up to 250A
      • GBT: up to 250A
      • CHAdeMO: up to 125A
    • Efficiency: ≥95%
    • Power factor: ≥0.99 (at 100% load)
    • Energy consumption (idle): ≤24W
  • Hardware & Design
    • Installation: Floor-standing
    • Shell material: Galvanized steel
    • Dimensions (L×W×H): 700 × 520 × 1800 mm
    • Weight: ≤290kg (60kW), ≤310kg (90kW), ≤330kg (120kW)
    • Charging outlets: Single (CCS1 / CCS2 / CHAdeMO / GBT / NACS)
    • Cable length: 5 meters
    • Display: 7-inch LCD touchscreen with LED indicators
    • Cable routing: Bottom inlet, top outlet
  • Connectivity & Control
    • Network: Ethernet / Wi-Fi / 4G
    • Access control: RFID card / eMotion Charging App
    • Platform: Connected to the eMotion Charging Network
  • User Interface & Compliance
    • Interface: Emergency stop button, LED status lights, card swiping, touchscreen
    • Standards:
      • EN IEC 61851-1:2019, IEC 61851-1:2017
      • EN 61851-23:2014, EN 61851-24:2014
      • EN IEC 61000-6-2:2019, EN IEC 61000-6-4:2019
      • EN IEC 61851-21-2:2021
  • Environmental & Safety
    • Protection level: IP55
    • Impact resistance: IK10 (IK08 for screen)
    • Cooling method: Forced-air cooling
    • Working temperature: –30°C to +50°C
    • Storage temperature: –30°C to +85°C
    • Humidity: 5%–95% non-condensing
    • Max altitude: <2000m
    • Security:
      • Over/under voltage protection
      • Overload protection
      • Current leakage protection
      • Grounding protection
      • Over-temperature protection
      • Lightning/surge protection
